INDEX

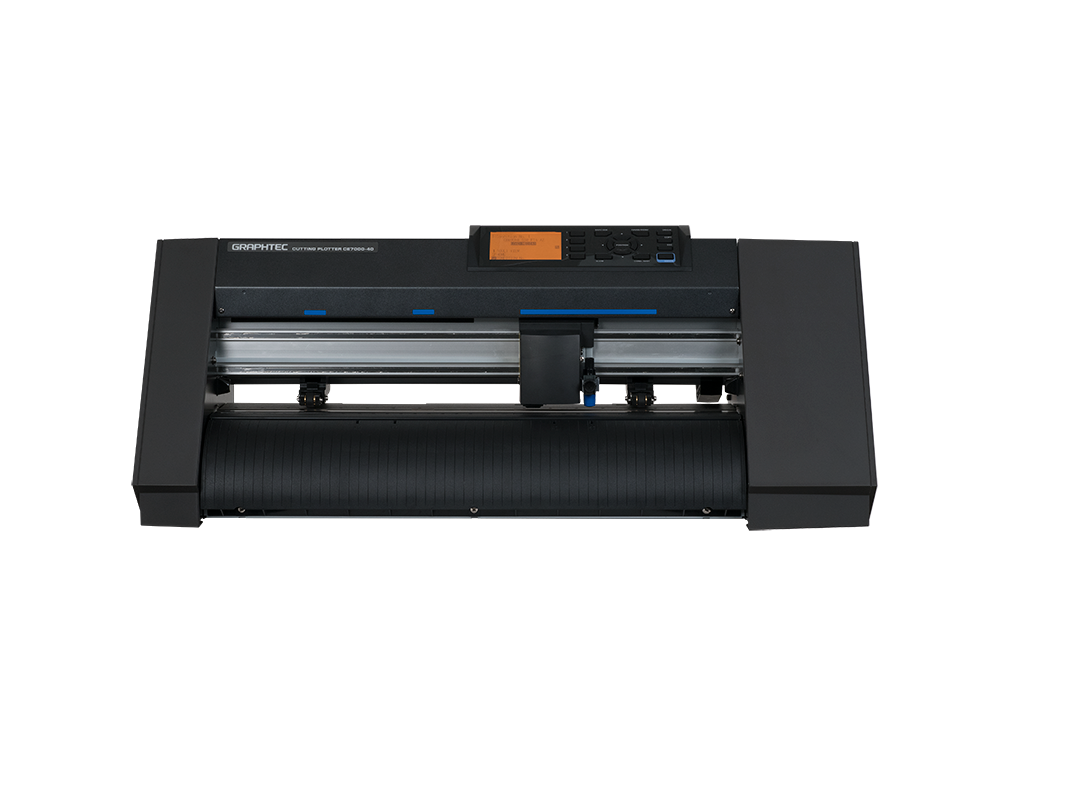

CE7000 Series
|
|
|

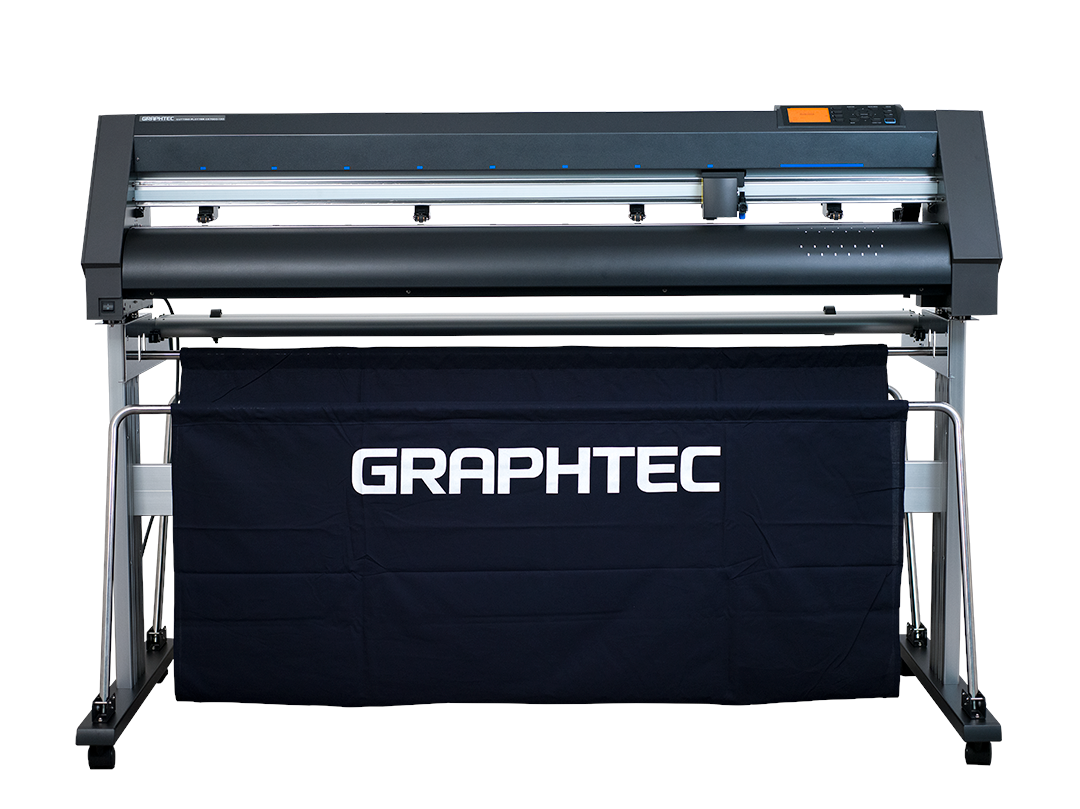

| CE7000-130 | CE7000-60 | CE7000-40 |
| (plus AKZ, AP) | (plus ASC/FMARK) |
The Graphtec CE7000 Series is an updated CE6000 machine with several improvements. Introduced on 20200107, the CE7000 includes all of the improvements of the CE6000-PLUS as well as:
- USB Datalink where you can run the CE7000 from a USB thumb drive
- Perf-cut channel
- Ethernet Connectivity
- Improved version 8.0 ARMS for print and cut
- Barcode feature for print and cut
- 120cm model has been increased to 130cm
- CE7000-130AKZ - a CE7000-130 with a window tint kit
- CE7000-130AP - a CE7000-130 with a textile pattern making kit
- CE7000-40ASC - a CE7000-40 with the FMARK2/ASC paper pattern cutting kit
- CE7000-130 1270mm (50 in)
- CE7000-60 603mm (23.74 in)
- CE7000-40 375m (14.76 in)
|
|
|
|
|
|
|
| CE7000 SERIES VID | CE7000 BROCHURE | CE7000 SETUP | CE7000 USER | CE7000 BARCODE READ | CE7000 FEATURES | CE7000/FC9000 BLADE CHART |
|
|
|
| CE7000-130 AKZ | CE7000-130 AP | CE7000-40 ASC/FMARK2 |
CE6000-PLUS Series
|
|
|

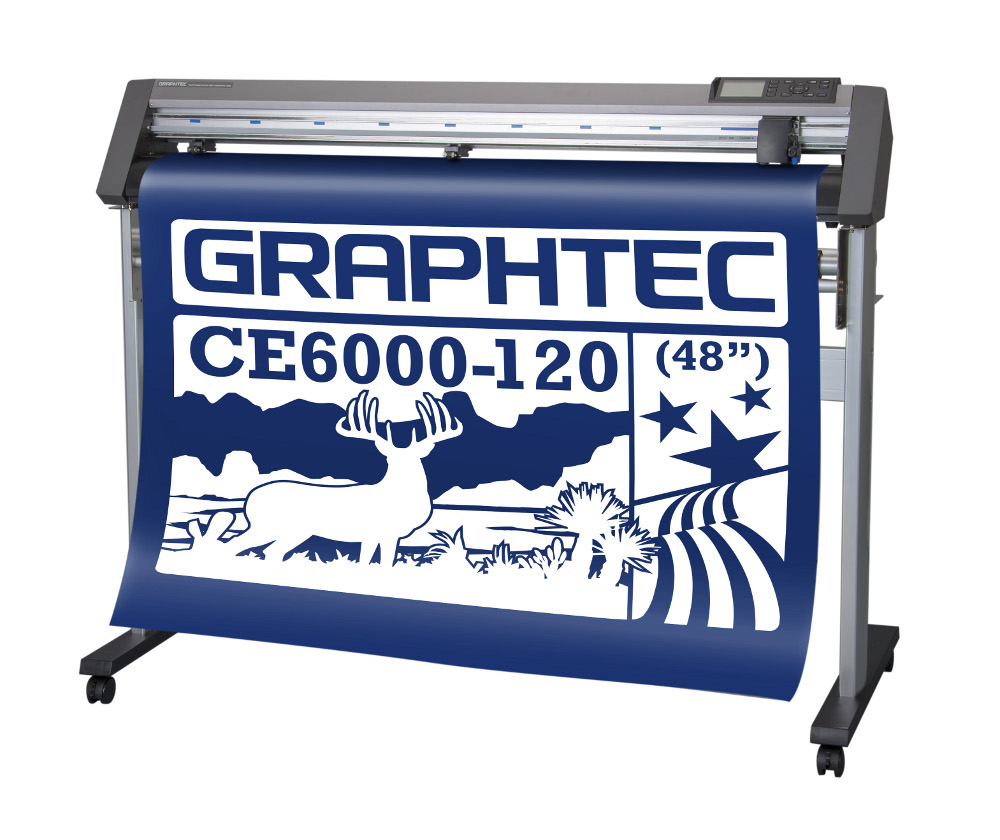

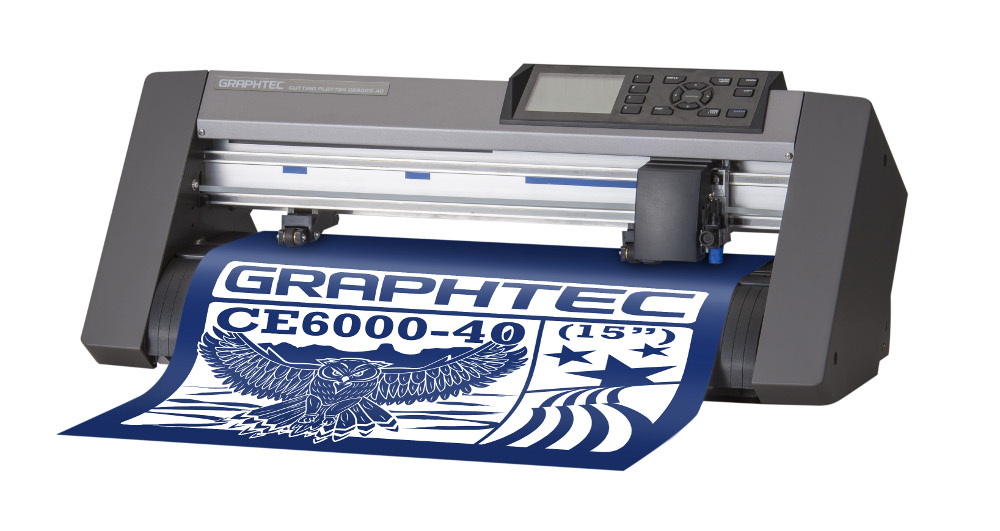

| CE6000-120PLUS | CE6000-60PLUS | CE6000-40PLUS |
The Graphtec CE6000 PLUS Series is designed to be an economical fully-featured cutting system. It replaced the CE6000 series on 20170501. The CE6000 PLUS Series is the same as the CE6000 series with the exceptions of an increased gram-force capability on the 40/60 models, updated ARMS5 registration system, increased cutting area, inclusion of Graphtec Pro Studio licenses, a loupe, and an updated motherboard. Features include:
- Optical sensor on all models including the CE6000-40PLUS 15" model. This allows for Auto Registration on Print/Cut (ARMS).
- Four-position Auto-Detection for Scale, X, and Y corrections
- Stand included on CE6000-120PLUS and CE6000-60PLUS.
- 450g maximum cutting force on the CE6000-120PLUS, CE6000-60PLUS and CE6000-40PLUS.
- 39 in/sec (990mm/sec) maximum speed
- Windows and Mac support
- Illustrator and Corel Draw support
- Comes with Cutting Master controller software and Graphtec Studio design software
- 2 year standard warranty
Cutting Widths:
- CE6000-120PLUS, CE6000-120AKZ, CE6000-120AP 1213mm (47.75 in)
- CE6000-60PLUS 603mm (23.74 in)
- CE6000-40PLUS 375m (14.76 in)
- CE LITE-50 498m (19.6 in)
|
|
|
|

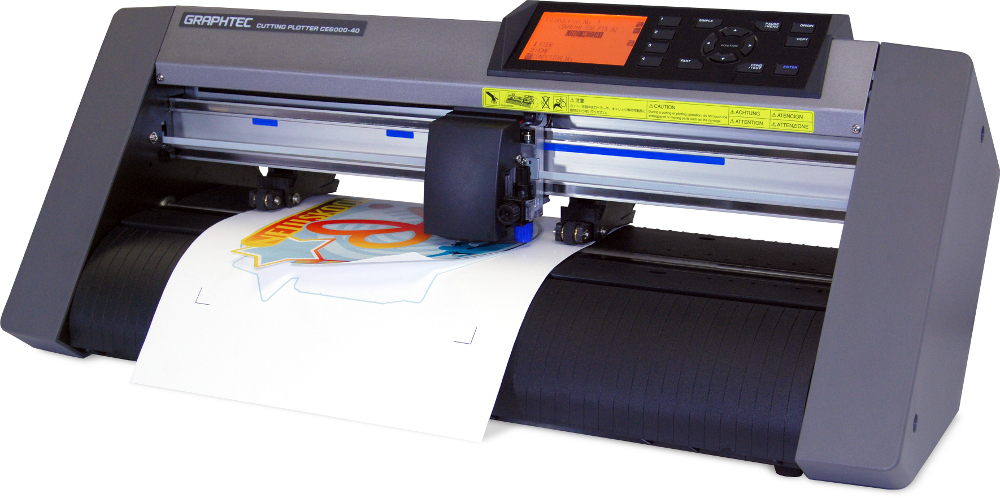

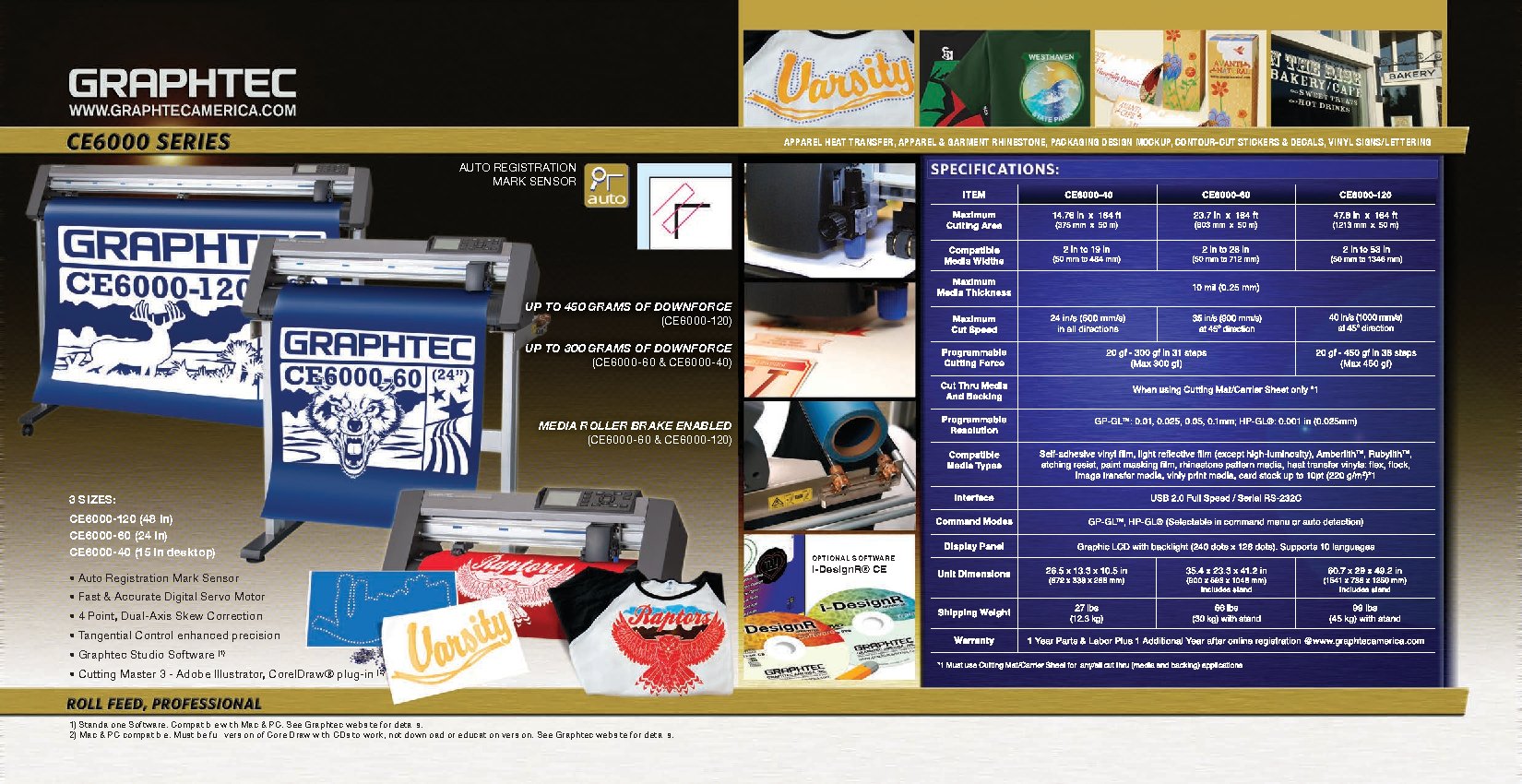

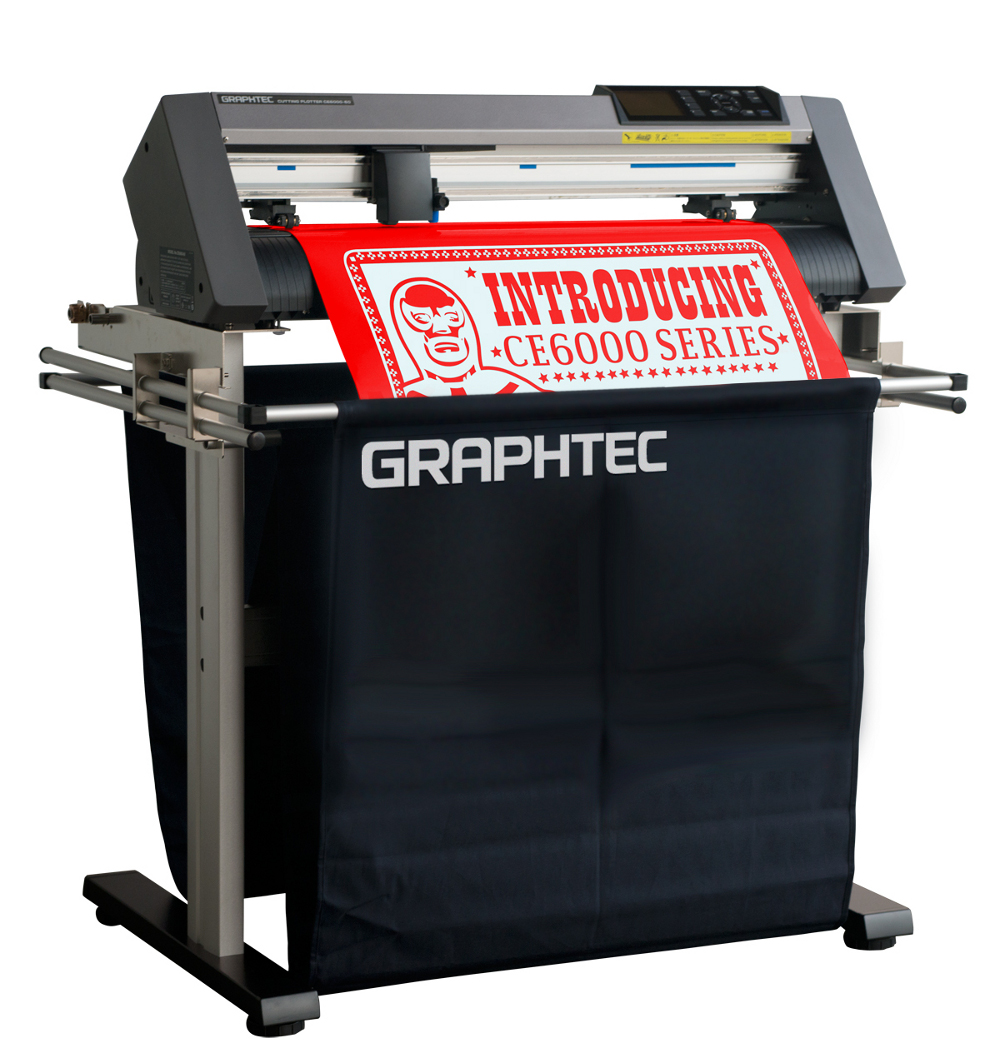

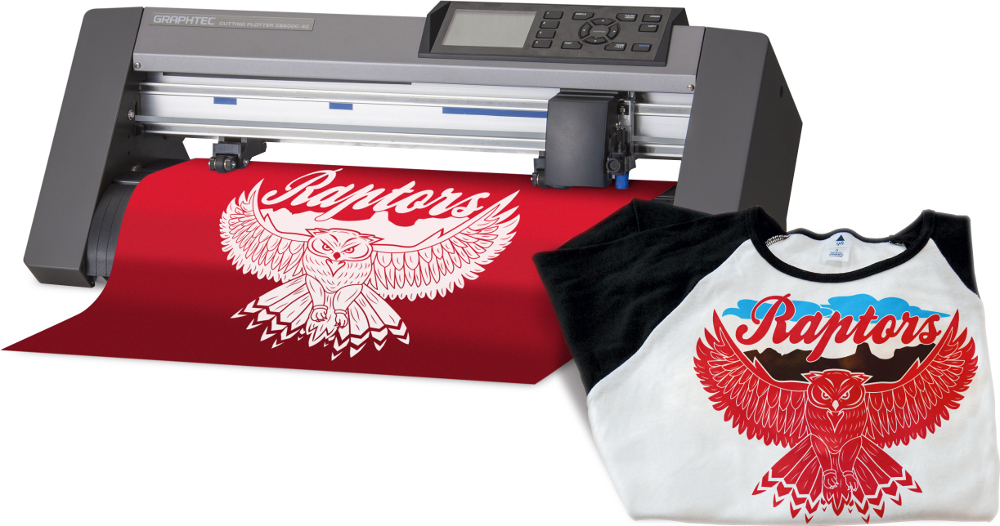

| CE6000 SERIES POSTER | CE6000-60 BASKET | CE6000-40 PRINT-CUT | CE6000-40 T-SHIRT |
|
|
|
|
|
| ST-0083 INSTALL | CE6000 BASKET | CE6000 STAND | CE6000 STAND ASSY | WARRANTY NOTE |
CE Series Timeline
- CE7000 Introduction: 20200107
- CELITE Introduction: 20180122
- CE6000-PLUS Introduction: 20170215
- CE6000 Introduction: 20121015
- CE5000 Introduction: 20060706
